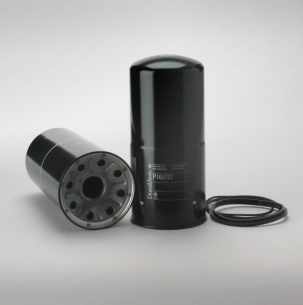

Donaldson Filtration P165762 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.08 inch (129 mm)
Thread Size 1 1/2-16 UN
Length 10.66 inch (270.76 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 1000 6 micron
Flow Direction Standard
Style Spin-On
Series W023, HBK05, SP50/60, SP80/90, SP100/120
Media Type Synthetic
Price Type F
Primary Application PALL HC7500SKN8H
Packaged Dimensions
Packaged Length 5.40 inch (13.716 cm)
Packaged Width 5.40 inch (13.716 cm)
Packaged Height 11.50 inch (29.210 cm)
Packaged Weight 3.53 lb (1.600 kg)
Packaged Volume 0.19 ft3 (0.005 m3)
Pieces Per Pallet 147
Other Information
Country of Origin United States
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330017470
