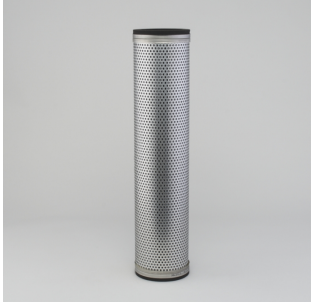

Donaldson Filtration 65786 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.62 inch (142.75 mm)
Inner Diameter 3.72 inch (94.49 mm)
Length 23.31 inch (592.07 mm)
Efficiency Beta 2 17 micron
Collapse Burst 49 psi (3.4 bar)
Flow Direction Reverse
Style Cartridge
Media Type Cellulose
Price Type FH
Packaged Dimensions
Packaged Length 6.80 inch (17.272 cm)
Packaged Width 6.70 inch (17.018 cm)
Packaged Height 26.20 inch (66.548 cm)
Packaged Weight 7.05 lb (3.201 kg)
Packaged Volume 0.69 ft3 (0.019 m3)
Pieces Per Pallet 22
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330017494
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov.
