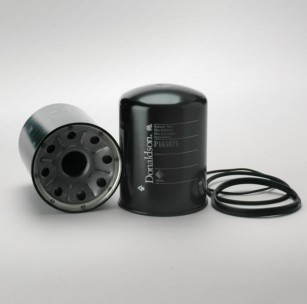

Donaldson Filtration P165875 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.08 inch (129 mm)
Thread Size 1 1/2-16 UN
Length 6.66 inch (169.2 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 1000 11 micron
Flow Direction Standard
Style Spin-On
Series W023, HBK05, SP50/60, SP80/90, SP100/120
Media Type Synthetic
Price Type F
Primary Application PALL HC7500SUS4H
Packaged Dimensions
Packaged Length 5.70 inch (14.478 cm)
Packaged Width 5.70 inch (14.478 cm)
Packaged Height 7.10 inch (18.034 cm)
Packaged Weight 2.60 lb (1.180 kg)
Packaged Volume 0.13 ft3 (0.004 m3)
Pieces Per Pallet 320
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330017517
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov.
