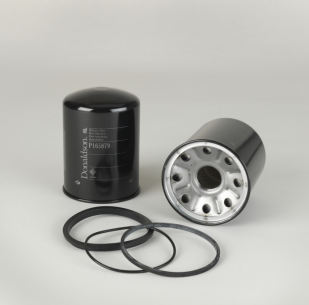

Donaldson Filtration P165879 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.08 inch (129 mm)
Thread Size 1 1/2-16 UN
Length 6.66 inch (169.16 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 2 14 micron
Efficiency Beta 1000 50 micron
Flow Direction Standard
Style Spin-On
Series W023, HBK05, SP50/60, SP80/90, SP100/120
Media Type Synthetic
Price Type F
Packaged Dimensions
Packaged Length 5.60 inch (14.224 cm)
Packaged Width 5.70 inch (14.478 cm)
Packaged Height 7.20 inch (18.288 cm)
Packaged Weight 2.68 lb (1.217 kg)
Packaged Volume 0.13 ft3 (0.004 m3)
Pieces Per Pallet 128
Other Information
Country of Origin United States
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330017555
