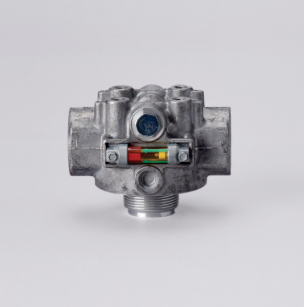

Donaldson Filtration P165973 HEAD ASSEMBLY, HMK05 DURAMAX

Attributes
Length 5.00 inch (127 mm)
Height 3.79 inch (96.27 mm)
Inlet Size SAE-20
Outlet Size SAE-20
Filter-to-Head Thread 1 3/4-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK05/25
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 5.50 inch (13.970 cm)
Packaged Width 5.30 inch (13.462 cm)
Packaged Height 4.50 inch (11.430 cm)
Packaged Weight 2.30 lb (1.044 kg)
Packaged Volume 0.08 ft3 (0.002 m3)
Pieces Per Pallet 128
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330017579
