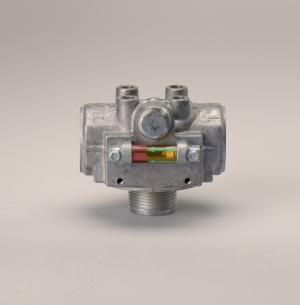

Donaldson Filtration P166086 HEAD ASSEMBLY, HMK04 DURAMAX

Attributes
Length 4.08 inch (103.63 mm)
Height 3.38 inch (85.85 mm)
Inlet Size 1 NPT
Outlet Size 1 NPT
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK04/24
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 4.80 inch (12.192 cm)
Packaged Width 4.70 inch (11.938 cm)
Packaged Height 5.50 inch (13.970 cm)
Packaged Weight 1.62 lb (0.735 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 104
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330017609
