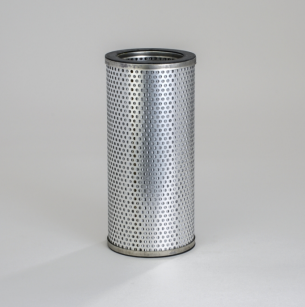

Donaldson Filtration P166204 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.62 inch (142.75 mm)
Inner Diameter 4.03 inch (102.36 mm)
Length 12.00 inch (304.8 mm)
Gasket OD 5.55 inch (141 mm)
Gasket ID 4.09 inch (104 mm)
Efficiency Beta 200 42 micron
Efficiency Beta 1000 50 micron
Collapse Burst 100 psi (6.9 bar)
Flow Direction Inside-Out
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 6.20 inch (15.748 cm)
Packaged Width 6.40 inch (16.256 cm)
Packaged Height 12.80 inch (32.512 cm)
Packaged Weight 3.20 lb (1.453 kg)
Packaged Volume 0.29 ft3 (0.008 m3)
Pieces Per Pallet 32
Other Information
Country of Origin United States
NMFC Code 069100-03
HTS Code 8421290040
UPC Code 742330017661
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov.
