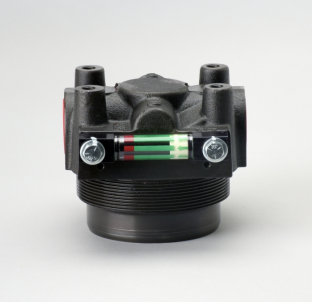

Donaldson Filtration P166353 HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads
• A variety of low, medium and high-pressure filter heads
available for a wide range of applications.
• Choose between optional features for a customized heads
that best fits the needs of your specific application.
• A variety of inlet & outlet port configurations are available
to meet your exact requirements.
Attributes
Length 4.65 inch (118.11 mm)
Height 3.98 inch (101 mm)
Inlet Size SAE-16
Outlet Size SAE-16
Filter-to-Head Thread 1 1/2-18 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HPK03
Price Type H
Packaged Dimensions
Packaged Length 0.55 FT
Packaged Width 0.55 FT
Packaged Height 0.47 FT
Packaged Weight 7.96 lb (3.614 kg)
Packaged Volume 0.14 ft3 (0.004 m3)
Pieces Per Pallet 49
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330112038
