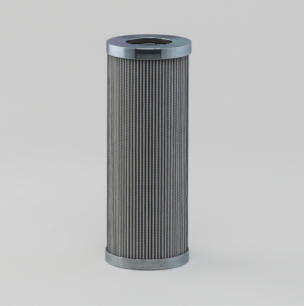

Donaldson Filtration P167186 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Viton
Outer Diameter 3.11 inch (78.87 mm)
Inner Diameter 1.7 inch (43.2 mm)
Length 8.22 inch (208.9 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 3002 psi (207 bar)
Style Cartridge
Series HPK03, FPK04, HPK04
Media Type Synthetic
Price Type FH
Primary Application PALL HC9601FUT8H
Packaged Dimensions
Packaged Length 3.60 inch (9.144 cm)
Packaged Width 3.50 inch (8.890 cm)
Packaged Height 10.10 inch (25.654 cm)
Packaged Weight 2.84 lb (1.289 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 140
Other Information
Country of Origin United States
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330018118
