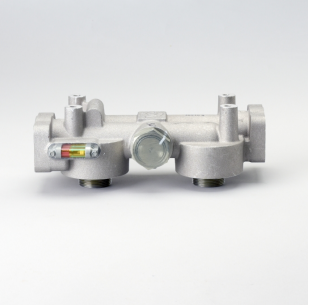

Donaldson Filtration P167297 HEAD ASSEMBLY, HMK25 DURAMAX

Attributes
Length 12.02 inch (305.31 mm)
Height 6.29 inch (159.77 mm)
Inlet Size SAE-24
Outlet Size SAE-24
Filter-to-Head Thread 1 3/4-12 UN (x2)
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK05/25
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 6.90 inch (17.526 cm)
Packaged Width 4.90 inch (12.446 cm)
Packaged Height 13.20 inch (33.528 cm)
Packaged Weight 8.15 lb (3.698 kg)
Packaged Volume 0.26 ft3 (0.007 m3)
Pieces Per Pallet 36
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330018200
