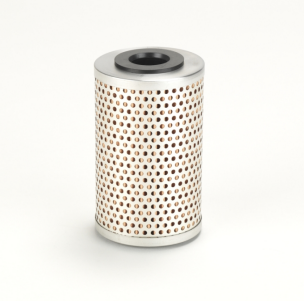

Donaldson Filtration P167522 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 2.98 inch (75.8 mm)
Inner Diameter 1.04 inch (26.4 mm)
Length 4.75 inch (120.7 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Cellulose
Price Type FH
Packaged Dimensions
Packaged Length 3.50 inch (8.890 cm)
Packaged Width 3.50 inch (8.890 cm)
Packaged Height 5.60 inch (14.224 cm)
Packaged Weight 0.55 lb (0.250 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 288
Other Information
Country of Origin Mexico
NMFC Code 133320
HTS Code 8421290065
UPC Code 742330018415
