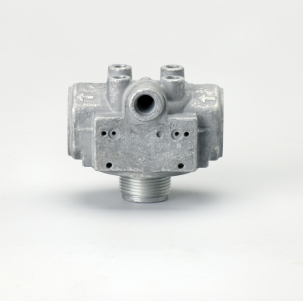

Donaldson Filtration P169317 HEAD ASSEMBLY, HMK04 DURAMAX

Attributes
Length 4.08 inch (103.63 mm)
Height 3.38 inch (85.85 mm)
Inlet Size 3/4-14 NPT
Outlet Size 3/4-14 NPT
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK04/24
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 4.60 inch (11.684 cm)
Packaged Width 3.80 inch (9.652 cm)
Packaged Height 4.50 inch (11.430 cm)
Packaged Weight 1.56 lb (0.708 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 234
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330019184
