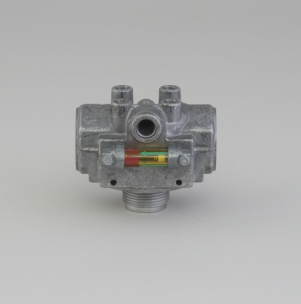

Donaldson Filtration P169320 HEAD ASSEMBLY, HMK04 DURAMAX

Attributes
Length 4.00 inch (101.6 mm)
Height 3.38 inch (85.85 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve No
Series HMK04/24
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 4.60 inch (11.684 cm)
Packaged Width 3.80 inch (9.652 cm)
Packaged Height 4.60 inch (11.684 cm)
Packaged Weight 1.58 lb (0.717 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 24
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330019191
