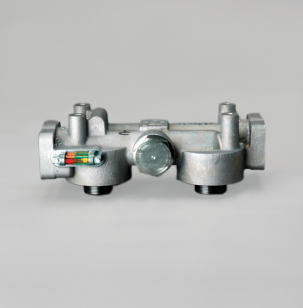

Donaldson Filtration P169984 HEAD ASSEMBLY, HMK25 DURAMAX

Attributes
Length 11.84 inch (300.74 mm)
Height 6.29 inch (159.77 mm)
Inlet Size 1 1/2 SAE 4 Bolt Code 61
Outlet Size 1 1/2 SAE 4 Bolt Code 61
Filter-to-Head Thread 1 3/4-12 UN (x2)
Bypass Valve No
Series HMK05/25
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 12.20 inch (30.988 cm)
Packaged Width 4.80 inch (12.192 cm)
Packaged Height 7.30 inch (18.542 cm)
Packaged Weight 7.91 lb (3.591 kg)
Packaged Volume 0.25 ft3 (0.007 m3)
Pieces Per Pallet 35
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330019733
