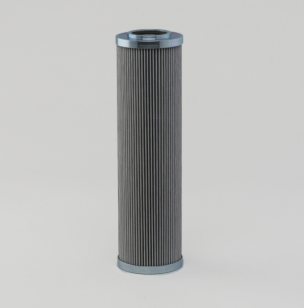

Donaldson Filtration P170597 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Viton
Outer Diameter 3.57 inch (90.7 mm)
Inner Diameter 1.90 inch (48.2 mm)
Length 12.95 inch (329 mm)
Efficiency Beta 1000 14 micron
Bypass Valve No
Collapse Burst 3047 psi (210.1 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application HYDAC/HYCON 0660D010BHHC
Packaged Dimensions
Packaged Length 4.80 inch (12.192 cm)
Packaged Width 4.80 inch (12.192 cm)
Packaged Height 17.90 inch (45.466 cm)
Packaged Weight 5.58 lb (2.533 kg)
Packaged Volume 0.24 ft3 (0.007 m3)
Pieces Per Pallet 283
Other Information
Country of Origin United States
NMFC Code 069100-04
HTS Code 8421290040
UPC Code 742330020241
