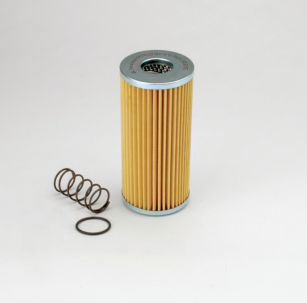

Donaldson Filtration P171539 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.74 inch (95 mm)
Inner Diameter 1.61 inch (41 mm)
Length 7.95 inch (202 mm)
Gasket OD 1.83 inch (46.6 mm)
Gasket ID 1.56 inch (39.6 mm)
Overall Length 8.23 inch (209 mm)
Efficiency Beta 2 10 micron
Efficiency Beta 200 32 micron
Efficiency Beta 1000 36 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Maximum Operating Temperature 248 °F (120 °C)
Style Cartridge
Series FIK
Media Type Cellulose
Price Type FH
Primary Application F.B.O. CR180
Packaged Dimensions
Packaged Length 4.30 inch (10.922 cm)
Packaged Width 3.90 inch (9.906 cm)
Packaged Height 9.80 inch (24.892 cm)
Packaged Weight 1.09 lb (0.492 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Pieces Per Pallet 140
Other Information
Country of Origin Italy
NMFC Code 069100-07
HTS Code 8421290040
UPC Code 742330083758
