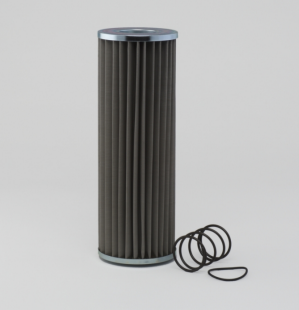

Donaldson Filtration P171583 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 60 micron
Outer Diameter 5.51 inch (140 mm)
Inner Diameter 2.51 inch (63.7 mm)
Length 15.75 inch (400 mm)
Efficiency Beta 2 60 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Series FIK
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 5.80 inch (14.732 cm)
Packaged Width 5.80 inch (14.732 cm)
Packaged Height 16.70 inch (42.418 cm)
Packaged Weight 3.17 lb (1.436 kg)
Packaged Volume 0.33 ft3 (0.009 m3)
Pieces Per Pallet 96
Other Information
Country of Origin Italy
NMFC Code 069100-04
HTS Code 8421290040
UPC Code 742330022221
