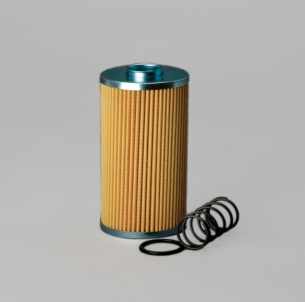

Donaldson Filtration P171588 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.74 inch (95 mm)
Inner Diameter 1.61 inch (41 mm)
Length 6.65 inch (169 mm)
Overall Length 6.93 inch (176 mm)
Efficiency Beta 2 27 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Cellulose
Price Type FH*
Primary Application PUROLATOR LI2692
Packaged Dimensions
Packaged Length 4.10 inch (10.414 cm)
Packaged Width 4.10 inch (10.414 cm)
Packaged Height 9.70 inch (24.638 cm)
Packaged Weight 1.15 lb (0.522 kg)
Packaged Volume 0.09 ft3 (0.003 m3)
Pieces Per Pallet 480
Other Information
Country of Origin Italy
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330119037
