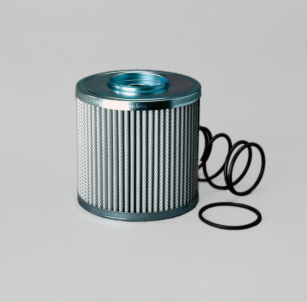

Donaldson Filtration P171591 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.51 inch (140 mm)
Inner Diameter 2.56 inch (65 mm)
Length 5.39 inch (137 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 5.80 inch (14.732 cm)
Packaged Width 5.80 inch (14.732 cm)
Packaged Height 8.10 inch (20.574 cm)
Packaged Weight 2.15 lb (0.973 kg)
Packaged Volume 0.16 ft3 (0.004 m3)
Pieces Per Pallet 240
Other Information
Country of Origin Italy
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330119068
