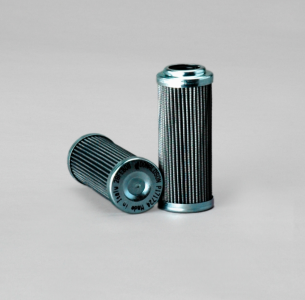

Donaldson Filtration P171724 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 60 micron
Outer Diameter 1.81 inch (46 mm)
Inner Diameter 1.02 inch (25.8 mm)
Length 4.45 inch (113 mm)
Efficiency Beta 2 60 micron
Collapse Burst 290 psi (20 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 2.36 inch (5.994 cm)
Packaged Width 2.36 inch (5.994 cm)
Packaged Height 7.09 inch (18.009 cm)
Packaged Weight 0.41 lb (0.187 kg)
Packaged Volume 0.02 ft3 (0.001 m3)
Pieces Per Pallet 2880
Other Information
Country of Origin Italy
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330120170
