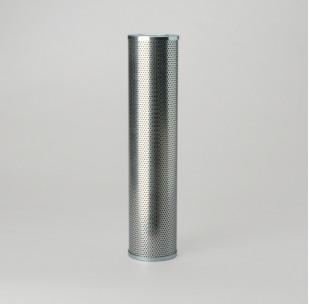

Donaldson Filtration P171814 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.17 inch (106 mm)
Inner Diameter 2.52 inch (64 mm)
Length 18.31 inch (465 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Cellulose
Price Type FH
Packaged Dimensions
Packaged Length 4.40 inch (11.176 cm)
Packaged Width 4.50 inch (11.430 cm)
Packaged Height 18.70 inch (47.498 cm)
Packaged Weight 3.40 lb (1.542 kg)
Packaged Volume 0.21 ft3 (0.006 m3)
Pieces Per Pallet 180
Other Information
Country of Origin Italy
NMFC Code 069100-06
HTS Code 8421290040
UPC Code 742330022726
