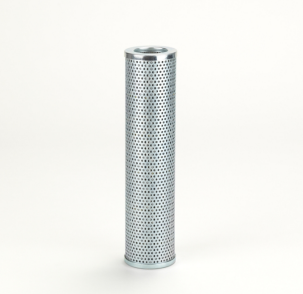

Donaldson Filtration P171818 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 2.82 inch (71.6 mm)
Inner Diameter 1.77 inch (45 mm)
Length 11.81 inch (300 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 3.15 inch (8.001 cm)
Packaged Width 3.54 inch (8.992 cm)
Packaged Height 16.14 inch (40.996 cm)
Packaged Weight 1.17 lb (0.529 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Pieces Per Pallet 308
Other Information
Country of Origin Italy
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330022764
