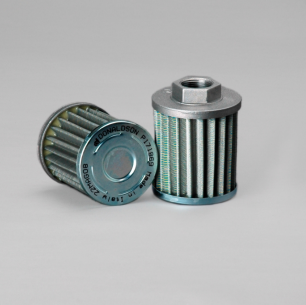

Donaldson Filtration P171869 HYDRAULIC FILTER, STRAINER

Why Choose Donaldson Hydraulic Strainers
• Suction strainers with stainless steel mesh screens protect
critical components such as pumps from damage.
• Tank mounted and in-tank options available.
• Variety of mesh sizes available to remove large particles or
objects built into the system during assembly or introduced
during standard maintenance.
• Prevents catastrophic failure.
Attributes
Mesh Rating 90 micron
Outer Diameter 2.95 inch (75 mm)
Thread Size 3/4 BSP/G
Length 3.29 inch (83.5 mm)
Efficiency Beta 2 90 micron
Flow Direction Standard
Style Strainer
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 3.15 inch (8.001 cm)
Packaged Width 3.15 inch (8.001 cm)
Packaged Height 3.94 inch (10.008 cm)
Packaged Weight 0.57 lb (0.257 kg)
Packaged Volume 0.02 ft3 (0.001 m3)
Pieces Per Pallet 1848
Other Information
Country of Origin Italy
NMFC Code 069100-13
HTS Code 8421290065
UPC Code 742330120682
