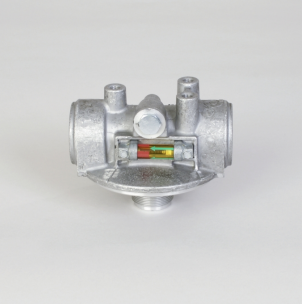

Donaldson Filtration P172953 HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads
• A variety of low, medium and high-pressure filter heads
available for a wide range of applications.
• Choose between optional features for a customized heads
that best fits the needs of your specific application.
• A variety of inlet & outlet port configurations are available
to meet your exact requirements.
Attributes
Length 5.53 inch (140.46 mm)
Height 4.41 inch (112 mm)
Inlet Size 1 1/4-11 1/2 NPT
Outlet Size 1 1/4-11 1/2 NPT
Filter-to-Head Thread 1 1/2-16 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HBK05
Price Type H
Packaged Dimensions
Packaged Length 6.10 inch (15.494 cm)
Packaged Width 6.00 inch (15.240 cm)
Packaged Height 4.80 inch (12.192 cm)
Packaged Weight 2.71 lb (1.228 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Pieces Per Pallet 36
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330955956
