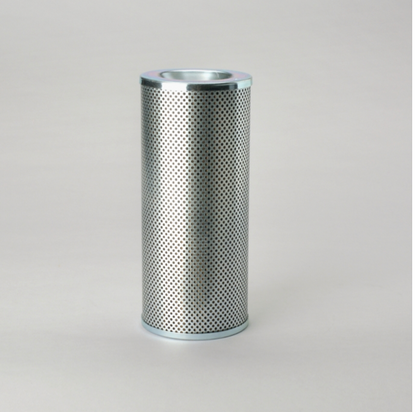

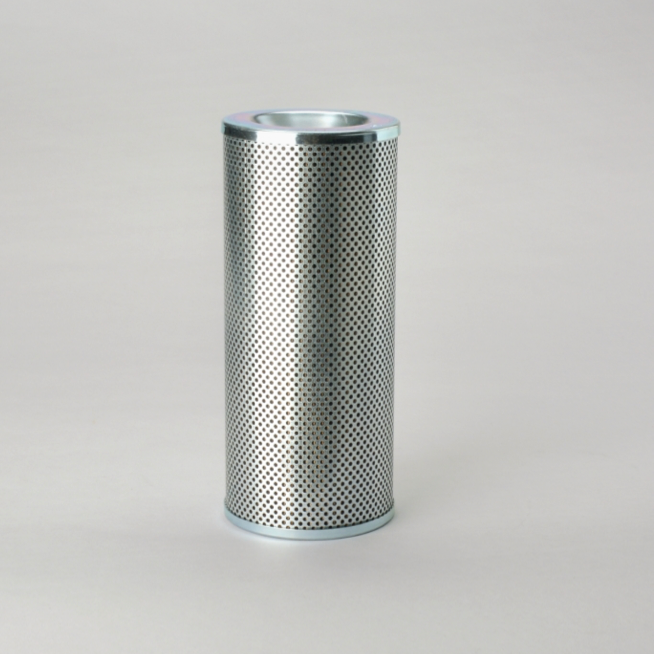

Donaldson Filtration P173055.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 4.96 inch (126 mm)

Inner Diameter 3.62 inch (92 mm)

Length 11.42 inch (290 mm)

Efficiency Beta 2 27 micron

Collapse Burst 145 psi (10 bar)

Flow Direction Inside-Out

Style Cartridge

Media Type Cellulose

Price Type FHPrimary Application FAIREY ARLON TXX8A10

Packaged Dimensions

Packaged Length 5.40 inch (13.716 cm)

Packaged Width 5.40 inch (13.716 cm)

Packaged Height 12.30 inch (31.242 cm)

Packaged Weight 2.70 lb (1.225 kg)

Packaged Volume 0.21 ft3 (0.006 m3)

Pieces Per Pallet 22

Other Information

Country of Origin Italy

NMFC Code 069100-04

HTS Code 8421290040

UPC Code 742330023587
