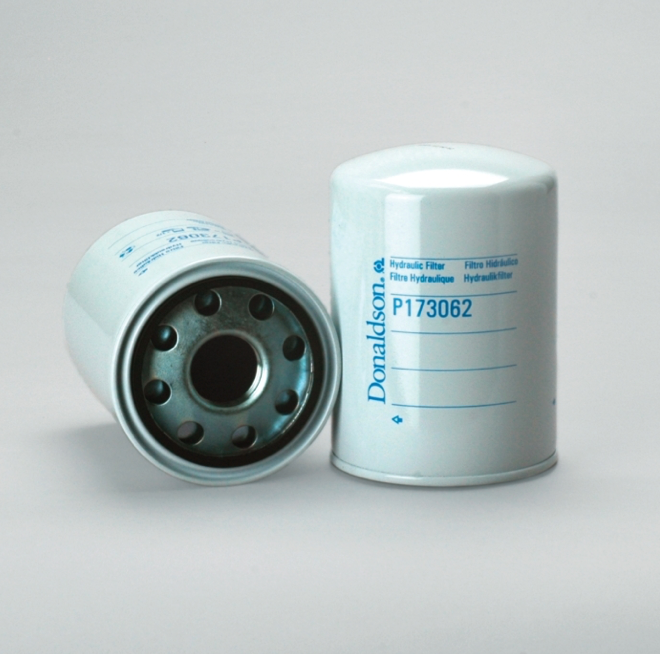

Donaldson Filtration P173062.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 5.04 inch (128 mm)

Thread Size 1 1/4 BSP/G

Length 7.05 inch (179 mm)

Gasket OD 4.21 inch (107 mm)

Gasket ID 3.82 inch (97 mm)

Efficiency Beta 2 10 micron

Flow Direction Outside-In

Style Spin-OnMedia Type Cellulose

Price Type FH*

Packaged Dimensions

Packaged Length 5.91 inch (15.011 cm)

Packaged Width 5.91 inch (15.011 cm)

Packaged Height 8.27 inch (21.006 cm)

Packaged Weight 3.35 lb (1.519 kg)

Packaged Volume 0.17 ft3 (0.005 m3)

Pieces Per Pallet 12

Other Information

Country of Origin Italy

NMFC Code 069100-04

HTS Code 8421290040

UPC Code 742330121481
