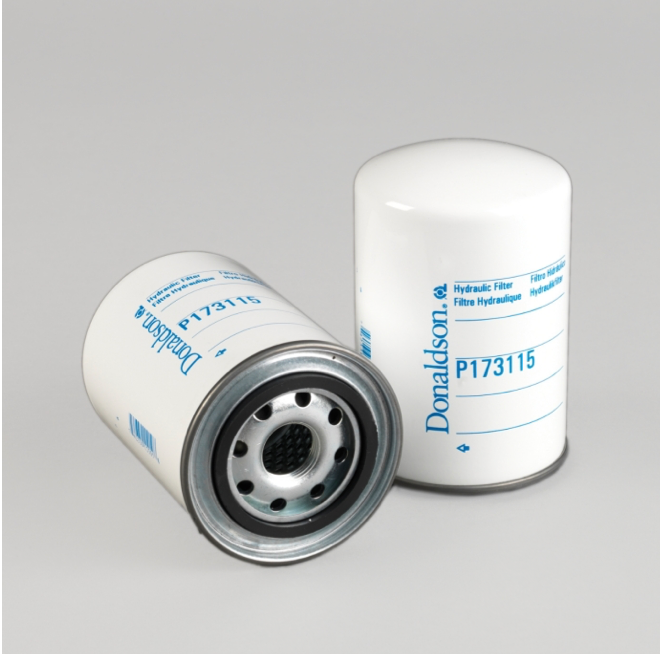

Donaldson Filtration P173115.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 3.78 inch (96 mm)

Thread Size 3/4 BSP/G

Length 5.67 inch (144 mm)

Efficiency Beta 2 90 micron

Flow Direction Outside-In

Style Spin-On

Media Type Wire Mesh

Price Type FHPrimary Application FILTREC A110T125

Packaged Dimensions

Packaged Length 3.94 inch (10.008 cm)

Packaged Width 3.94 inch (10.008 cm)

Packaged Height 6.69 inch (16.993 cm)

Packaged Weight 1.72 lb (0.781 kg)

Packaged Volume 0.06 ft3 (0.002 m3)

Pieces Per Pallet 409

Other Information

Country of Origin Italy

NMFC Code 069100-13

HTS Code 8421290040

UPC Code 742330123058
