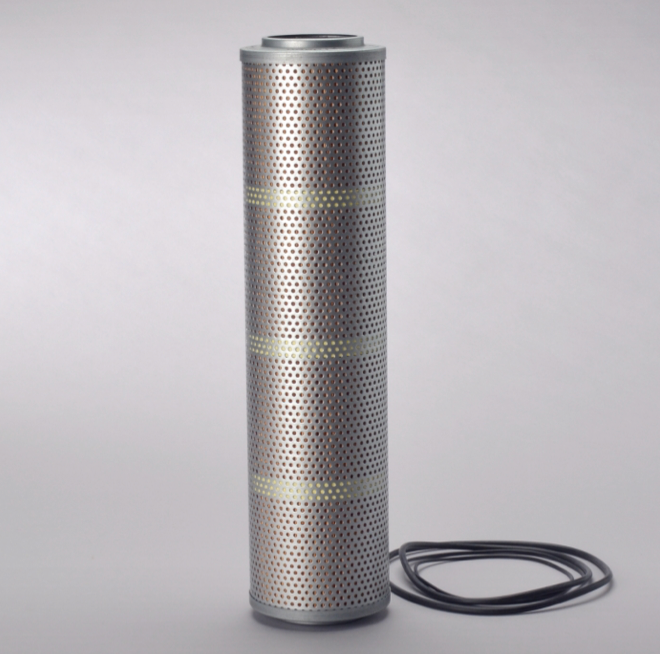

Donaldson Filtration P173207.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 4.41 inch (112 mm)

Inner Diameter 2.72 inch (69.1 mm)

Length 17.24 inch (437.89 mm)

Overall Length 18.05 inch (458.5 mm)

Efficiency Beta 2 7 micron

Efficiency Beta 1000 23 micron

Collapse Burst 145 psi (10 bar)

Style Cartridge

Media Type CellulosePrice Type F

Packaged Dimensions

Packaged Length 4.90 inch (12.446 cm)

Packaged Width 5.00 inch (12.700 cm)

Packaged Height 18.80 inch (47.752 cm)

Packaged Weight 3.40 lb (1.544 kg)

Packaged Volume 0.27 ft3 (0.007 m3)

Pieces Per Pallet 144

Other Information

Country of Origin Indonesia

NMFC Code 069100-03

HTS Code 8421290040

UPC Code 742330106761
