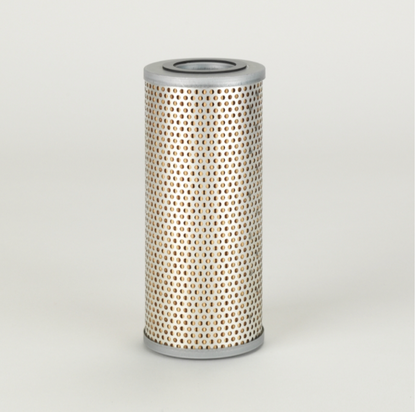

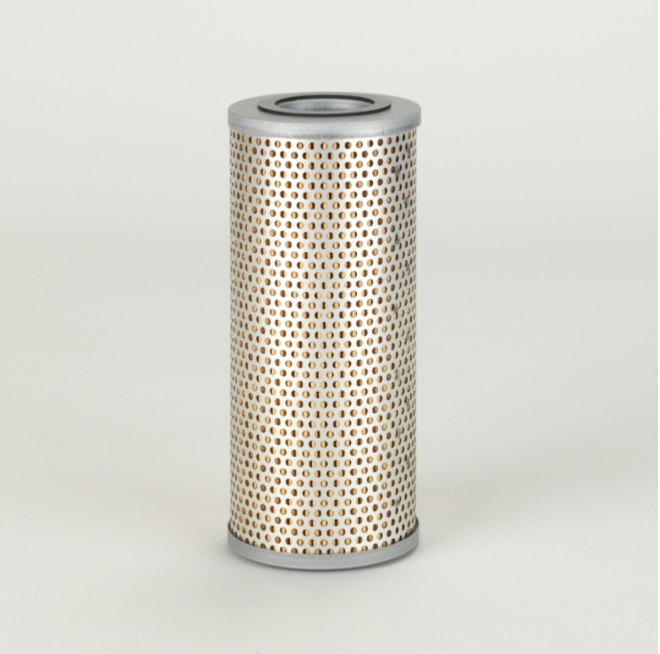

Donaldson Filtration P173481.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.27 inch (83 mm)

Inner Diameter 1.57 inch (40 mm)

Length 7.72 inch (196 mm)

Efficiency Beta 2 7 micron

Collapse Burst 145 psi (10 bar)

Style Cartridge

Media Type Synthetic

Price Type FPackaged Dimensions

Packaged Length 3.94 inch (10.008 cm)

Packaged Width 3.94 inch (10.008 cm)

Packaged Height 8.27 inch (21.006 cm)

Packaged Weight 1.53 lb (0.693 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 50

Other Information

Country of Origin Italy

NMFC Code 069100-10

HTS Code 8421290040

UPC Code 742330103999
