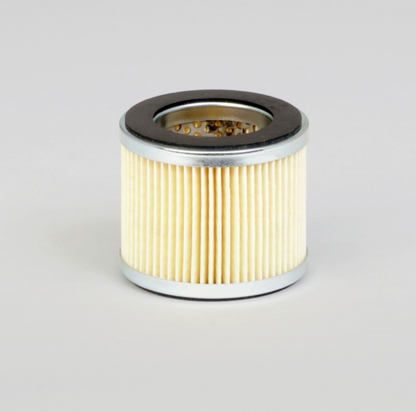

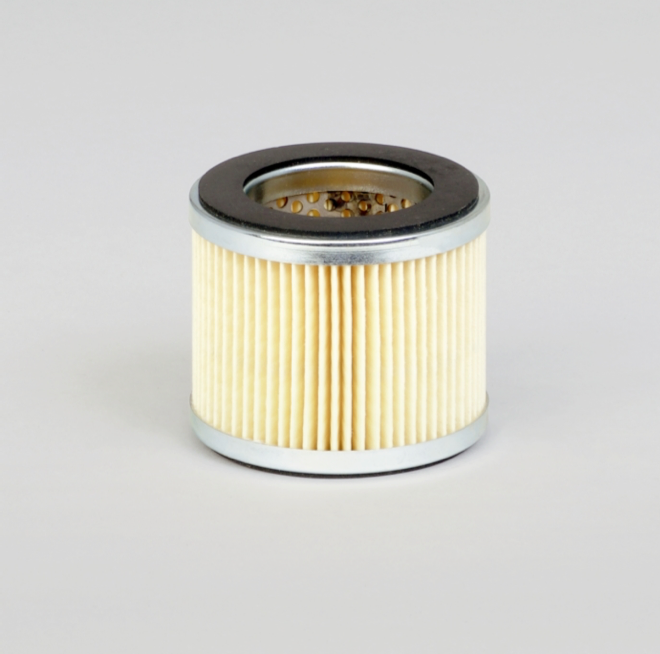

Donaldson Filtration P173596.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 2.76 inch (70 mm)

Inner Diameter 1.69 inch (43 mm)

Length 2.24 inch (57 mm)

Efficiency Beta 2 17 micron

Style Cartridge

Media Type Cellulose

Price Type FH

Packaged DimensionsPackaged Length 4.72 inch (11.989 cm)

Packaged Width 2.76 inch (7.010 cm)

Packaged Height 2.76 inch (7.010 cm)

Packaged Weight 0.36 lb (0.161 kg)

Packaged Volume 0.02 ft3 (0.001 m3)

Pieces Per Pallet 1287

Other Information

Country of Origin Canada

NMFC Code 069100-13

HTS Code 8421290040

UPC Code 742330023877
