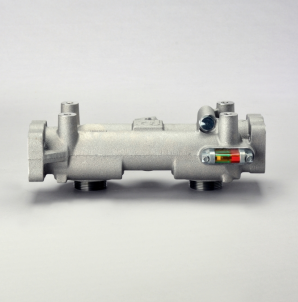

Donaldson Filtration P173812 HEAD ASSEMBLY, HMK25 DURAMAX

Attributes
Length 11.84 inch (300.74 mm)
Height 6.29 inch (159.77 mm)
Inlet Size 1 1/2 SAE 4 Bolt Code 61
Outlet Size 1 1/2 SAE 4 Bolt Code 61
Filter-to-Head Thread 1 3/4-12 UN (x2)
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HMK05/25
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 0.58 FT
Packaged Width 0.42 FT
Packaged Height 1.11 FT
Packaged Weight 8.23 lb (3.736 kg)
Packaged Volume 0.27 ft3 (0.008 m3)
Pieces Per Pallet 144
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330242599
