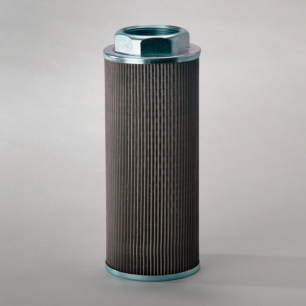

Donaldson Filtration P173915 HYDRAULIC FILTER, STRAINER

Why Choose Donaldson Hydraulic Strainers
• Suction strainers with stainless steel mesh screens protect
critical components such as pumps from damage.
• Tank mounted and in-tank options available.
• Variety of mesh sizes available to remove large particles or
objects built into the system during assembly or introduced
during standard maintenance.
• Prevents catastrophic failure.
Attributes
Mesh Rating 150 micron
Outer Diameter 3.94 inch (100.1 mm)
Thread Size 2 NPT
Length 9.85 inch (250.19 mm)
Efficiency Beta 2 150 micron
Bypass Valve Yes
Bypass Valve Setting LR 3 psi (0.2 bar)
Style Strainer
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 3.94 inch (10.008 cm)
Packaged Width 3.94 inch (10.008 cm)
Packaged Height 10.24 inch (26.010 cm)
Packaged Weight 1.63 lb (0.738 kg)
Packaged Volume 0.09 ft3 (0.003 m3)
Pieces Per Pallet 194
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330024362
