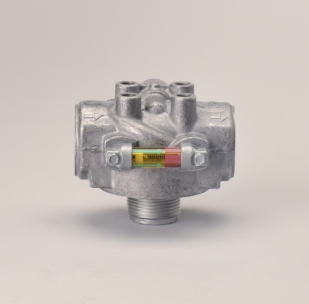

Donaldson Filtration P179381 HEAD ASSEMBLY, HMK04 DURAMAX

Attributes
Length 4.00 inch (101.6 mm)
Width 3.82 inch (97 mm)
Height 3.38 inch (85.85 mm)
Inlet Size SAE-16
Outlet Size SAE-16
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HMK04/24
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 4.70 inch (11.938 cm)
Packaged Width 4.70 inch (11.938 cm)
Packaged Height 5.70 inch (14.478 cm)
Packaged Weight 1.59 lb (0.722 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 68
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330112960
