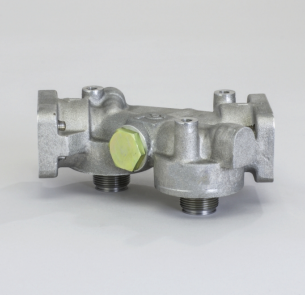

Donaldson Filtration P179582 HEAD ASSEMBLY, HMK24 DURAMAX

Attributes
Length 8.19 inch (208 mm)
Inlet Diameter 1.36 inch (34.5 mm)
Outlet Diameter 1.36 inch (34.5 mm)
Filter-to-Head Thread 1 3/8-12 UN (x2)
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HMK04/24
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 9.30 inch (23.622 cm)
Packaged Width 5.10 inch (12.954 cm)
Packaged Height 7.80 inch (19.812 cm)
Packaged Weight 5.13 lb (2.329 kg)
Packaged Volume 0.21 ft3 (0.006 m3)
Pieces Per Pallet 40
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330112144
