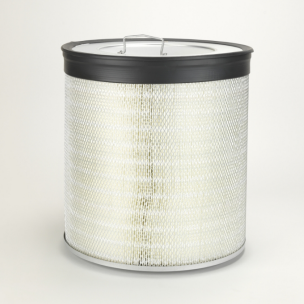

Donaldson Filtration P181048 AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?
Strong, reliable gasket is compressed against the air cleaner
housing to create a tight seal.
• High-efficiency cellulose media performs across a wide
range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media
during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and
prevents media from bunching to promote longer service
life.
Attributes
Overall Length 19.53 inch (496.1 mm)
Outer Diameter 17.58 inch (446.5 mm)
Inner Diameter 12.22 inch (310.3 mm)
Length 19.03 inch (483.4 mm)
Bolt Hole Diameter 0.42 inch (10.67 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
Price Type F
Packaged Dimensions
Packaged Length 19.80 inch (50.292 cm)
Packaged Width 19.70 inch (50.038 cm)
Packaged Height 20.80 inch (52.832 cm)
Packaged Weight 18.55 lb (8.422 kg)
Packaged Volume 4.70 ft3 (0.131 m3)
Pieces Per Pallet 8
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421310000
UPC Code 742330025499
