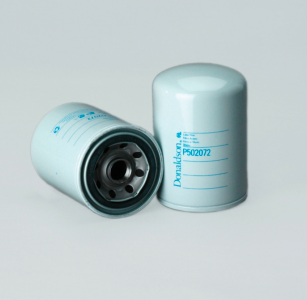

Donaldson Filtration P502072 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 3.62 inch (92 mm)
Thread Size M22 x 1.5
Length 5.47 inch (139 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.48 inch (63 mm)
Efficiency 50% 20 micron
Efficiency Test Std JIS D 1611
Bypass Valve Yes
Bypass Valve Setting LR 11 psi (0.76 bar)
Bypass Valve Setting HR 17 psi (1.17 bar)
Media Type Cellulose
Type Full-Flow
Style Spin-On
Price Type F
Packaged Dimensions
Packaged Length 4.10 inch (10.414 cm)
Packaged Width 3.90 inch (9.906 cm)
Packaged Height 5.90 inch (14.986 cm)
Packaged Weight 1.37 lb (0.622 kg)
Packaged Volume 0.05 ft3 (0.002 m3)
Pieces Per Pallet 672
Other Information
Country of Origin Indonesia
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330109946
