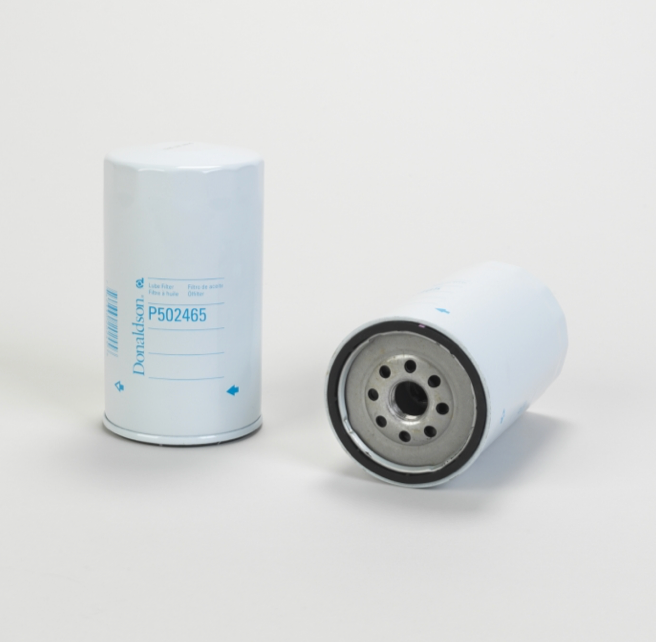

Donaldson Filtration P502465.LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size M22 x 1.5

Length 6.50 inch (165 mm)

Gasket OD 3.50 inch (89 mm)

Gasket ID 3.19 inch (81 mm)

Efficiency 50% 17 micron

Efficiency Test Std ISO 16889

Anti-Drainback Valve Yes

Bypass Valve YesBypass Valve Setting LR 15 psi (1 bar)

Media Type Cellulose

Collapse Burst 100 psi (6.9 bar)

Type Full-Flow

Style Spin-On

Price Type F

Primary Application JCB 32004133

Packaged Dimensions

Packaged Length 4.10 inch (10.414 cm)

Packaged Width 4.10 inch (10.414 cm)

Packaged Height 6.80 inch (17.272 cm)

Packaged Weight 1.46 lb (0.661 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 432

Other Information

Country of Origin Indonesia

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330202456
