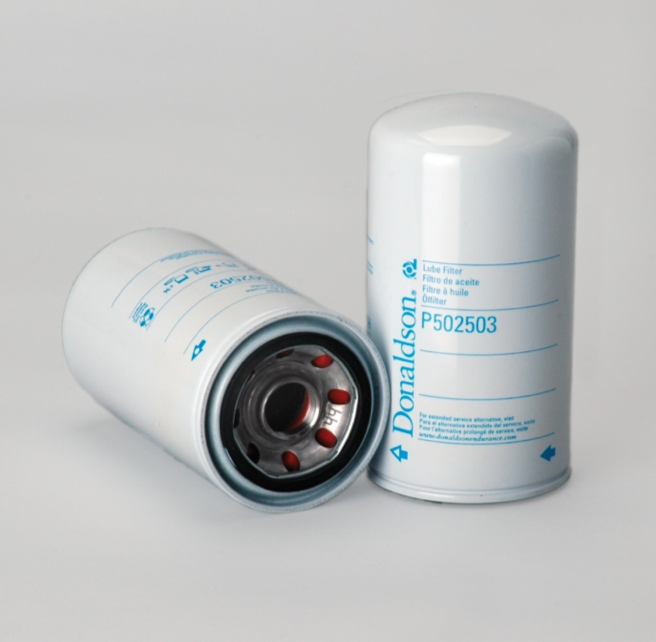

Donaldson Filtration P502503.LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?

Donaldson lube filters are designed to keep today’s engine

lube systems functioning at peak performance.

• Keep oil clean by capturing contaminants that cause

engine damage.

• Include heavy duty components that are built to perform,

built to last.

• Deliver essential engine protection for maximum cold flow

performance.

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 1-16 UN

Length 6.50 inch (165 mm)

Gasket OD 2.64 inch (67 mm)

Gasket ID 2.44 inch (62 mm)

Efficiency 99% 15 micron

Efficiency Test Std ISO 4548-12

Anti-Drainback Valve Yes

Bypass Valve YesBypass Valve Setting LR 11 psi (0.76 bar)

Bypass Valve Setting HR 17 psi (1.2 bar)

Media Type Synthetic

Collapse Burst 100 psi (6.9 bar)

Type Full-Flow

Style Spin-On

Price Type F

Packaged Dimensions

Packaged Length 3.60 inch (9.144 cm)

Packaged Width 3.60 inch (9.144 cm)

Packaged Height 6.70 inch (17.018 cm)

Packaged Weight 1.39 lb (0.631 kg)

Packaged Volume 0.05 ft3 (0.001 m3)

Pieces Per Pallet 720

Other Information

Country of Origin Mexico

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330964873

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are knownto the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
