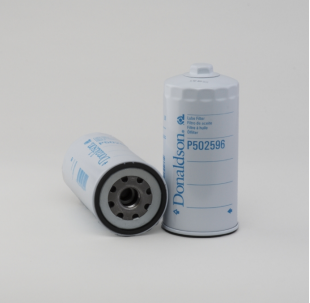

Donaldson Filtration P502596 LUBE FILTER, SPIN-ON FULL FLOW

Why Choose Donaldson Lube Filters?
Donaldson lube filters are designed to keep today’s engine
lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause
engine damage.
• Include heavy duty components that are built to perform,
built to last.
• Deliver essential engine protection for maximum cold flow
performance.
Attributes
Outer Diameter 4.25 inch (108 mm)
Thread Size M30 x 2
Length 9.33 inch (237 mm)
Gasket OD 4.06 inch (103 mm)
Gasket ID 3.65 inch (92.6 mm)
Efficiency 50% 9 micron
Efficiency 99% 21 micron
Efficiency Test Std ISO 4548-12
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 35 psi (2.4 bar)
Bypass Valve Setting HR 38 psi (2.6 bar)
Media Type Cellulose
Collapse Burst 99 psi (6.86 bar)
Price Type F
Primary Application LIEBHERR 10297295
Packaged Dimensions
Packaged Length 4.60 inch (11.684 cm)
Packaged Width 4.60 inch (11.684 cm)
Packaged Height 9.90 inch (25.146 cm)
Packaged Weight 2.87 lb (1.303 kg)
Packaged Volume 0.12 ft3 (0.003 m3)
Pieces Per Pallet 216
Other Information
Country of Origin Indonesia
NMFC Code 069100-06
HTS Code 8421230000
UPC Code 742330989401
