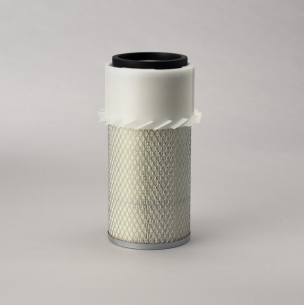

Donaldson Filtration P522449 AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?
Strong, reliable gasket is compressed against the air cleaner
housing to create a tight seal.
• High-efficiency cellulose media performs across a wide
range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media
during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing and
prevents media from bunching to promote longer service
life.
Attributes
Overall Length 11.50 inch (292.1 mm)
Outer Diameter 5.24 inch (133.2 mm)
Inner Diameter 3.25 inch (82.5 mm)
Length 11.00 inch (279.4 mm)
Bolt Hole Diameter 0.66 inch (16.76 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Primary Application KOMATSU 6001817300
Type Primary
Style Round
Media Type Cellulose
Price Type F
Packaged Dimensions
Packaged Length 7.20 inch (18.288 cm)
Packaged Width 7.10 inch (18.034 cm)
Packaged Height 12.40 inch (31.496 cm)
Packaged Weight 2.22 lb (1.006 kg)
Packaged Volume 0.37 ft3 (0.010 m3)
Pieces Per Pallet 144
Other Information
Country of Origin Mexico
NMFC Code 069100-02
HTS Code 8421310000
UPC Code 742330033203
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Styrene, which are known to the
State of California to cause cancer. For more
information go to www.P65Warnings.ca.gov.
