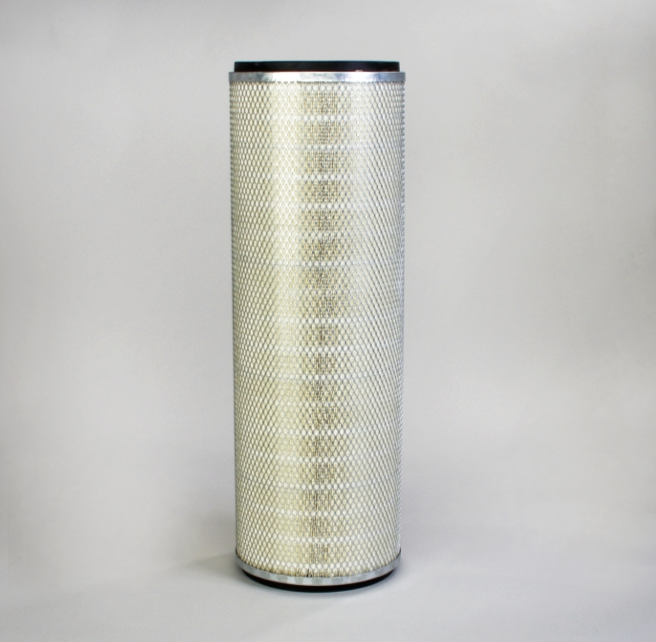

Donaldson Filtration P524831.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Overall Length 27.94 inch (709.68 mm)

Outer Diameter 9.50 inch (241.3 mm)

Inner Diameter 6.89 inch (175.01 mm)

Length 27.44 inch (696.98 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Type Primary

Style RoundMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 11.70 inch (29.718 cm)

Packaged Width 11.70 inch (29.718 cm)

Packaged Height 30.20 inch (76.708 cm)

Packaged Weight 9.42 lb (4.274 kg)

Packaged Volume 2.39 ft3 (0.067 m3)

Pieces Per Pallet 24

Other Information

Country of Origin United States

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330033869
