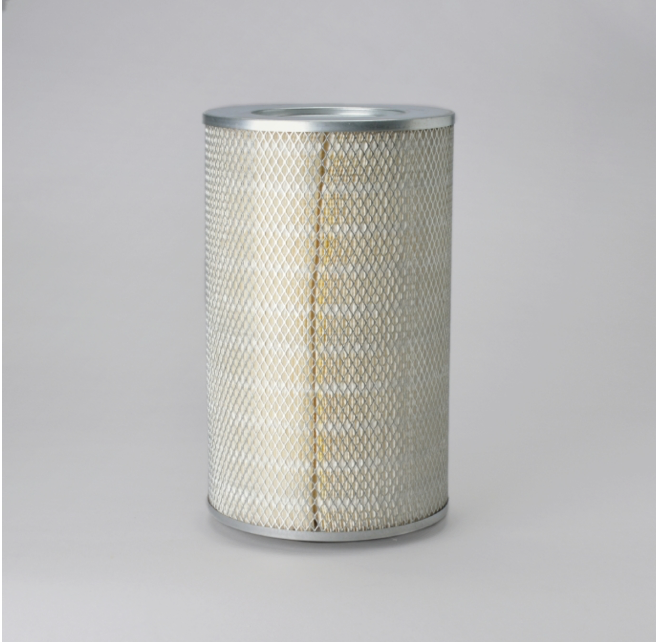

Donaldson Filtration P525943.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Overall Length 16.50 inch (419.1 mm)

Outer Diameter 9.91 inch (251.7 mm)

Inner Diameter 6.05 inch (153.7 mm)

Length 16.00 inch (406.4 mm)

Bolt Hole Diameter 0.66 inch (16.76 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Primary Application CASE/CASE IH A171255Type Primary

Style Round

Media Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 10.90 inch (27.686 cm)

Packaged Width 10.70 inch (27.178 cm)

Packaged Height 17.60 inch (44.704 cm)

Packaged Weight 6.50 lb (2.949 kg)

Packaged Volume 1.19 ft3 (0.033 m3)

Pieces Per Pallet 34

Other Information

Country of Origin United States

NMFC Code 069100-03

HTS Code 8421310000

UPC Code 742330036648
