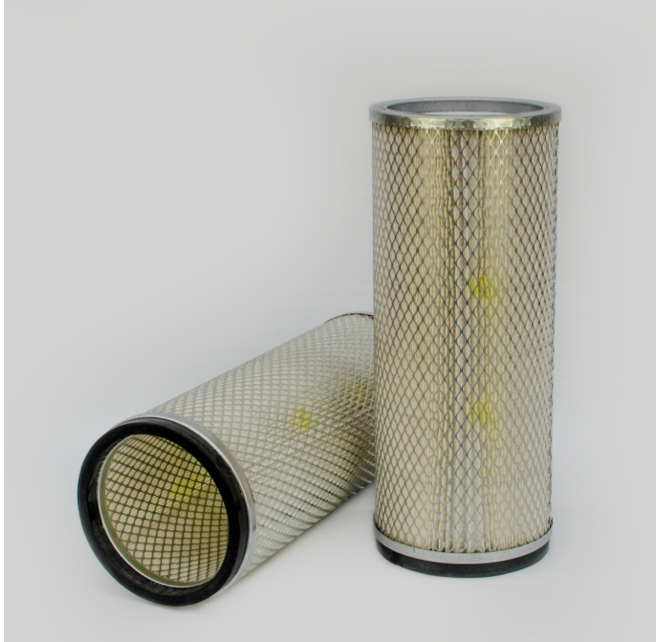

Donaldson Filtration P525944.AIR FILTER, SAFETY

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Outer Diameter 5.94 inch (150.9 mm)

Inner Diameter 4.85 inch (123.3 mm)

Length 14.00 inch (355.6 mm)

Bolt Hole Diameter 0.66 inch (16.76 mm)

Efficiency Test Std ISO 5011

Primary Application CASE/CASE IH A171256

Type SafetyStyle Round

Media Type Safety

Price Type F

Packaged Dimensions

Packaged Length 6.30 inch (16.002 cm)

Packaged Width 6.40 inch (16.256 cm)

Packaged Height 15.60 inch (39.624 cm)

Packaged Weight 2.34 lb (1.062 kg)

Packaged Volume 0.36 ft3 (0.010 m3)

Pieces Per Pallet 147

Other Information

Country of Origin Mexico

NMFC Code 069100-03

HTS Code 8421310000

UPC Code 742330036655

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
