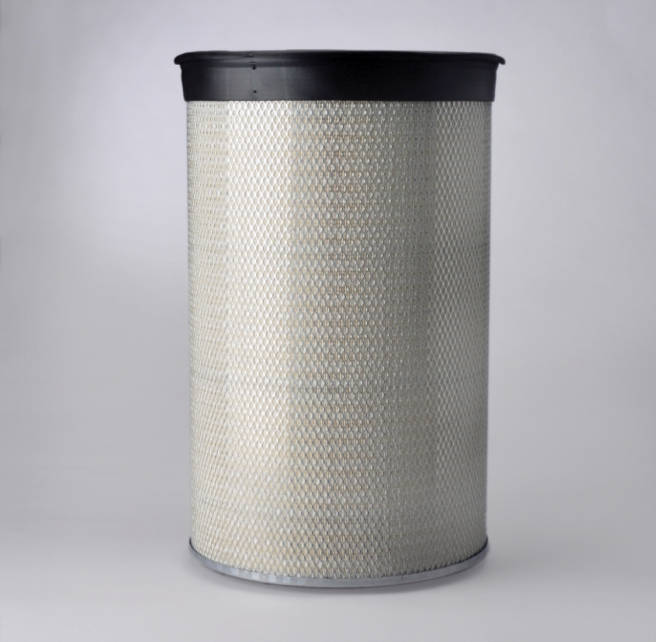

Donaldson Filtration P526415.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Overall Length 24.52 inch (622.8 mm)

Outer Diameter 14.68 inch (372.9 mm)

Inner Diameter 10.34 inch (262.6 mm)

Length 24.02 inch (610.1 mm)

Bolt Hole Diameter 0.90 inch (22.74 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Primary Application CATERPILLAR 4W5228Type Primary

Style Round

Media Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 1.34 FT

Packaged Width 1.38 FT

Packaged Height 2.13 FT

Packaged Weight 17.94 lb (8.145 kg)

Packaged Volume 3.94 ft3 (0.110 m3)

Pieces Per Pallet 12

Other Information

Country of Origin United States

NMFC Code 069100-05

HTS Code 8421310000

UPC Code 742330036730
