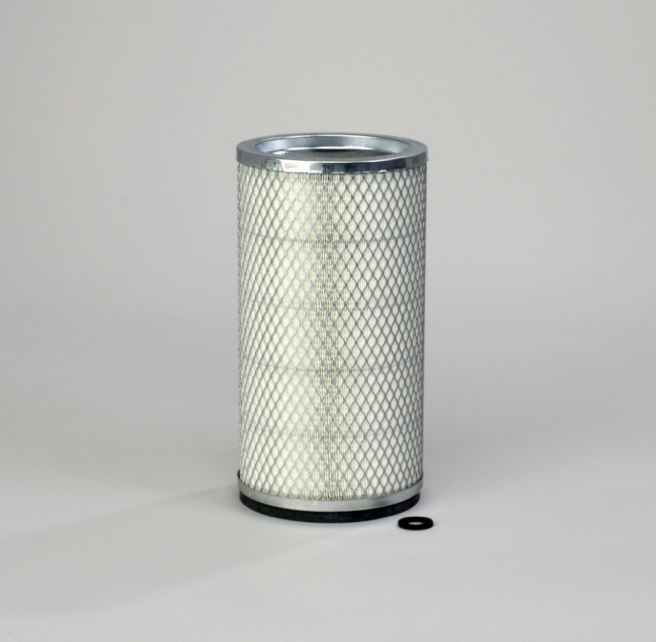

Donaldson Filtration P526416.AIR FILTER, SAFETY

Why Choose Donaldson Safety Filters?

Safety filters have two functions: to act as a backup to the

primary filter and to protect the engine during primary filter

servicing.

• Serve as a backup filter in case of primary filter damage or

improper installation.

• Prevent contaminants from entering the clean side of the

air intake system during primary filter servicing.

• Designed to plug rapidly if contamination finds its way past

the primary filter, alerting operators about an issue.

• Recommend that safety filters are replaced with every third

primary filter change unless there has been a failure of the

primary filter.

Attributes

Overall Length 11.38 inch (289.1 mm)

Outer Diameter 5.95 inch (151.1 mm)

Inner Diameter 4.85 inch (123.1 mm)

Length 11.00 inch (279.4 mm)

Bolt Hole Diameter 0.66 inch (16.76 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011Type Safety

Style Round

Media Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 6.90 inch (17.526 cm)

Packaged Width 7.10 inch (18.034 cm)

Packaged Height 12.30 inch (31.242 cm)

Packaged Weight 2.05 lb (0.928 kg)

Packaged Volume 0.35 ft3 (0.010 m3)

Pieces Per Pallet 36

Other Information

Country of Origin Mexico

NMFC Code 069100-03

HTS Code 8421310000

UPC Code 742330036747
