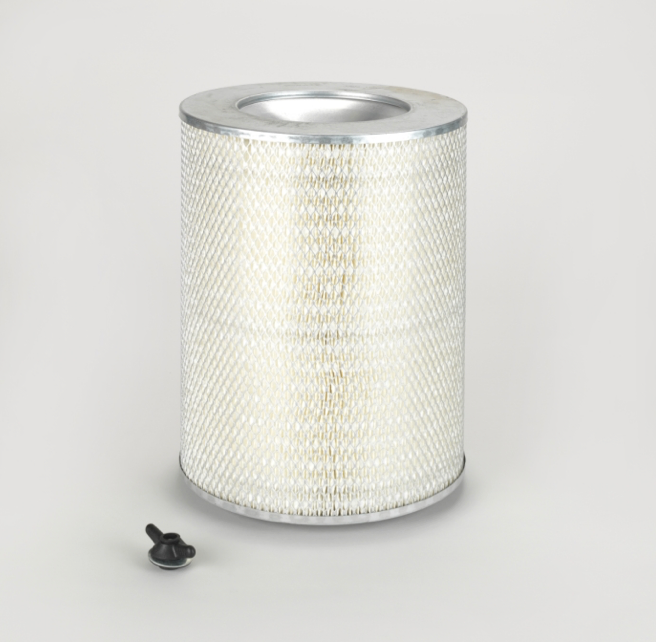

Donaldson Filtration P526428.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Overall Length 15.50 inch (393.7 mm)

Outer Diameter 10.87 inch (276 mm)

Inner Diameter 6.50 inch (165 mm)

Length 15.00 inch (381 mm)

Bolt Hole Diameter 0.89 inch (22.7 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Type PrimaryStyle Round

Media Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 11.70 inch (29.718 cm)

Packaged Width 11.60 inch (29.464 cm)

Packaged Height 16.90 inch (42.926 cm)

Packaged Weight 7.17 lb (3.255 kg)

Packaged Volume 1.33 ft3 (0.037 m3)

Pieces Per Pallet 36

Other Information

Country of Origin United States

NMFC Code 069100-05

HTS Code 8421310000

UPC Code 742330036754
