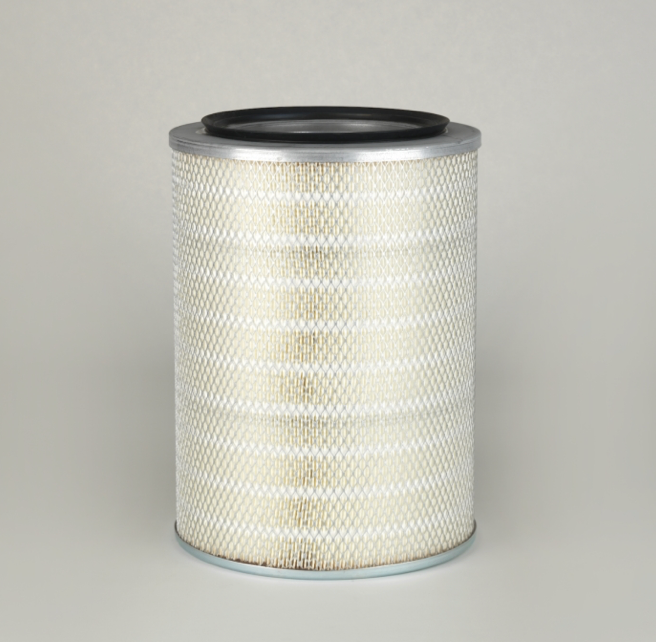

Donaldson Filtration P526509.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 11.50 inch (292 mm)

Inner Diameter 7.24 inch (184 mm)

Length 15.67 inch (398 mm)

Bolt Hole Diameter 0.39 inch (10 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Type Primary

Style RoundMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 11.90 inch (30.226 cm)

Packaged Width 12.30 inch (31.242 cm)

Packaged Height 16.80 inch (42.672 cm)

Packaged Weight 7.83 lb (3.555 kg)

Packaged Volume 1.42 ft3 (0.040 m3)

Pieces Per Pallet 18

Other Information

Country of Origin Mexico

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330036952
