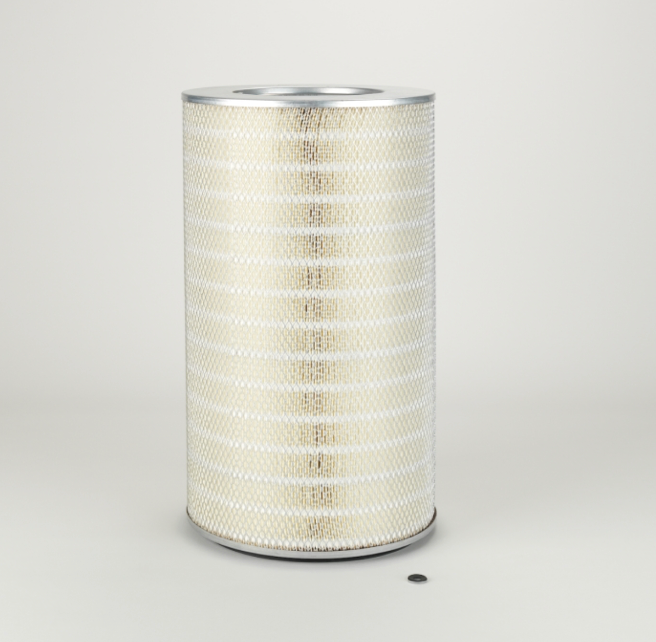

Donaldson Filtration P526512.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 12.52 inch (318 mm)

Inner Diameter 7.52 inch (191 mm)

Length 22.24 inch (565 mm)

Bolt Hole Diameter 0.39 inch (10 mm)

Efficiency Test Std ISO 5011

Type Primary

Style Round

Price Type FPackaged Dimensions

Packaged Length 13.10 inch (33.274 cm)

Packaged Width 13.40 inch (34.036 cm)

Packaged Height 23.60 inch (59.944 cm)

Packaged Weight 12.46 lb (5.657 kg)

Packaged Volume 2.40 ft3 (0.067 m3)

Pieces Per Pallet 18

Other Information

Country of Origin Mexico

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330036983
