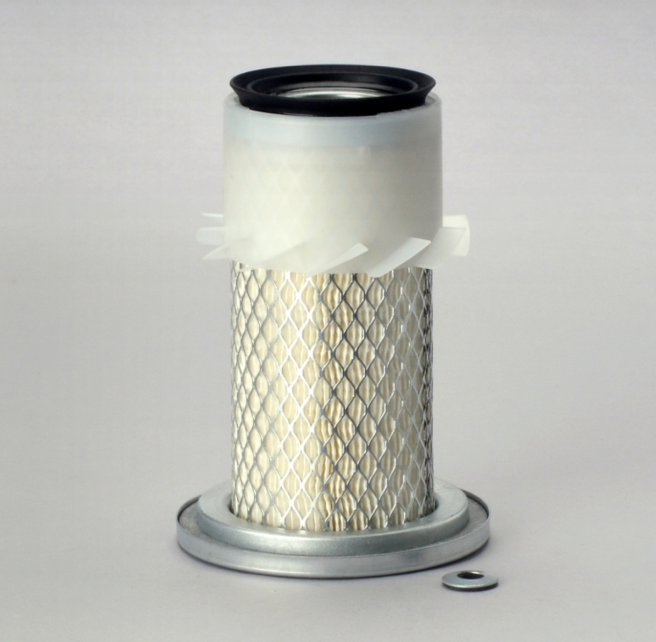

Donaldson Filtration P526801.AIR FILTER, PRIMARY FINNED

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 3.28 inch (83.2 mm)

Inner Diameter 1.67 inch (42.3 mm)

Length 7.00 inch (177.8 mm)

Bolt Hole Diameter 0.41 inch (10.41 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Type Primary

Style FinnedMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 5.50 inch (13.970 cm)

Packaged Width 5.60 inch (14.224 cm)

Packaged Height 11.20 inch (28.448 cm)

Packaged Weight 1.13 lb (0.511 kg)

Packaged Volume 0.20 ft3 (0.006 m3)

Pieces Per Pallet 63

Other Information

Country of Origin Mexico

NMFC Code 069100-06

HTS Code 8421310000

UPC Code 742330037072

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Styrene, which are known to the

State of California to cause cancer. For more

information go to www.P65Warnings.ca.gov.
