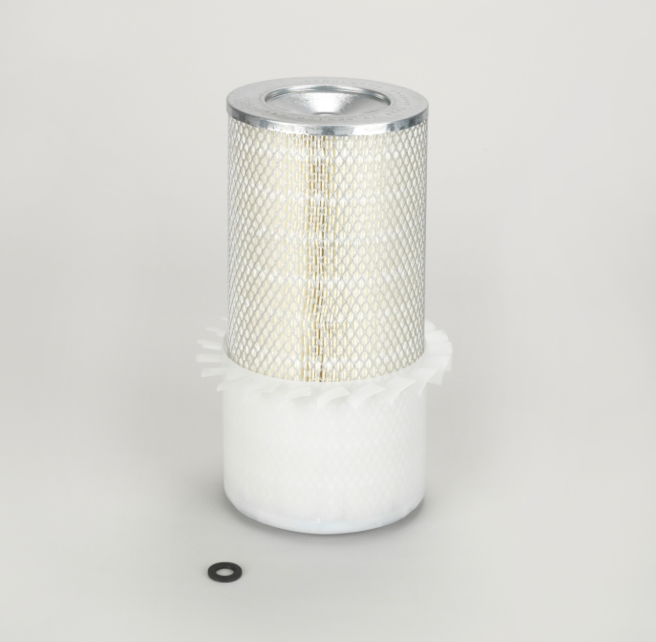

Donaldson Filtration P526840.AIR FILTER, PRIMARY FINNED

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 6.84 inch (173.74 mm)

Inner Diameter 4.22 inch (107.19 mm)

Length 15.00 inch (381 mm)

Bolt Hole Diameter 0.66 inch (16.76 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Type Primary

Style FinnedMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 9.40 inch (23.876 cm)

Packaged Width 9.50 inch (24.130 cm)

Packaged Height 16.80 inch (42.672 cm)

Packaged Weight 3.92 lb (1.777 kg)

Packaged Volume 0.87 ft3 (0.024 m3)

Pieces Per Pallet 30

Other Information

Country of Origin Mexico

NMFC Code 069100-08

HTS Code 8421310000

UPC Code 742330037096
